Carrier systems for vans and motorhomes

Comfortably take your bike, motorbike etc. wherever you go

Whether it’s for a morning trip to the bakery, a little errand in the nearest town or an extensive sightseeing tour of the surrounding area – taking your bike or motorbike with you on your travels lets you stay mobile and flexible at your holiday destination.

We offer a range of systems for bringing bicycles, e-bikes, scooters or quad bikes with you to your destination safely – from rear carriers for camper vans to rear garage loader models for motorhomes to trailer systems for quad bikes or two heavy motorbikes. It is important that you choose the right model for your camper van and pay attention to its load capacity, quality, safety and comfortable handling before deciding on a purchase. You are sure to find the right solution for (almost) every requirement at SAWIKO, the specialists for carrier systems and towbars!

Carrier systems for vans

Free access to the rear doors is usually the customer’s top priority when selecting a carrier system for their van. The most comfortable variants are the pivoting models. These allow the camper van’s rear doors to be opened easily even with the bicycle carrier on it, without any conversion work required. All except one of the models presented here are equipped with this feature.

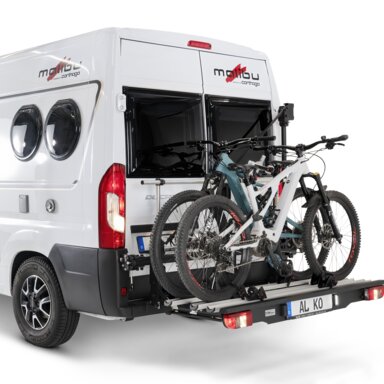

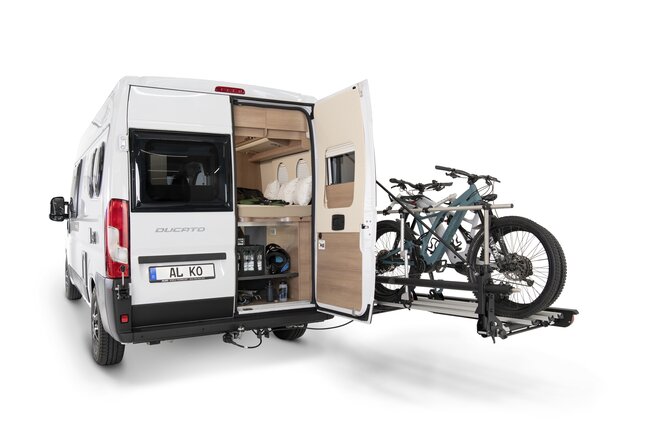

TRIGO-VAN

This user-friendly bicycle carrier for vans offers free access to the rear doors at all times. Thanks to its user-friendly and ergonomic design, you can swivel the rear carrier out safely and effortlessly, even when it is at maximum load. With a payload of 80 kilograms, the TRIGO-VAN is designed to hold a maximum of three bicycles or e-bikes. Thanks to its design and assembly, the construction is inherently stable and reliably prevents damage to the doors and hinges. The TRIGO-VAN is currently available for the FIAT Ducato, Peugeot Boxer and Citroën Jumper.

The transport platform can be folded up while the towbar remains fully usable. This latter must be already fitted on the vehicle and is not included in the carrier system’s delivery. If you do not have a towbar, you can have it retrofitted at SAWIKO. Of course, the TRIGO-VAN – like all SAWIKO products – has been extensively tested for durability in the AL-KO Technology Centre in accordance with the latest test procedures.

Productvideo

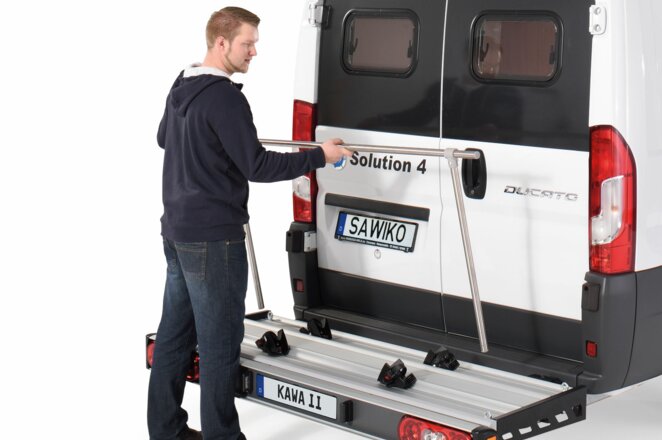

KAWA II

The Kawa II is very popular with mobile holidaymakers and can be used with almost all campervan models. the KAWA II’s modular design makes it extremely versatile and ideally suited for bikes, scooters or both together. If required, the KAWA II can be ‘fully loaded’ with 150 to 200 kilograms. The KAWA II is equipped with a retaining bracket that can be comfortably removed for access to the rear doors.

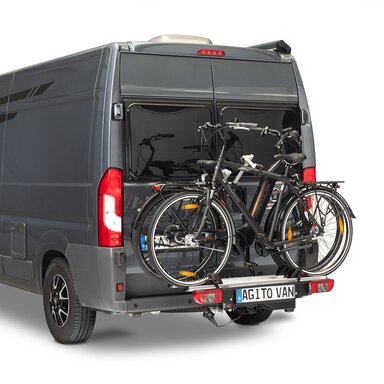

AGITO VAN

This rear carrier for the Ford Westfalia Nugget, Ford Tourneo Custom and Fiat Ducato van models has a load capacity of 60 kilograms and is designed to transport two bicycles, but can stretch to three. Thanks to its practical swing arm, the rear door can still be easily accessed with this model. You also have the option of mounting a transport box on the carrier.

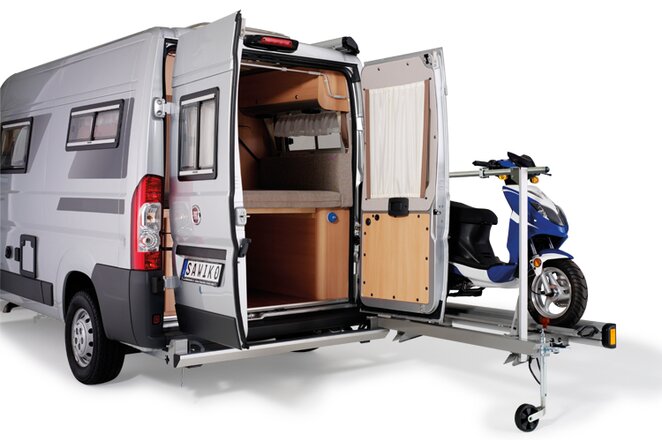

AGITO 120/150

These rear carriers, specially developed for (almost all) vans, can take up to 120 or 150 kilograms. This allows you to effortlessly transport up to four bikes or e-bikes, and even a light scooter. This aluminium carrier system can be completely swivelled out using a jockey wheel, so that the rear doors are always accessible with this model too.

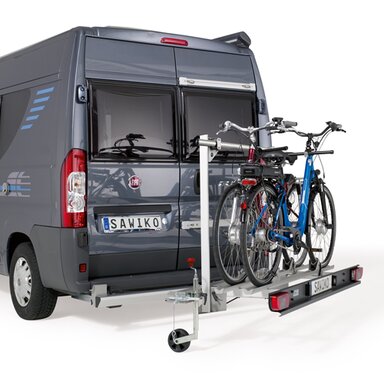

AGITO TOP

With a load capacity of up to 80 kilograms, the AGITO TOP, the AGITO models’ ‘little brother’, is also suitable for transporting one or two e-bikes on almost any van model. It can be swung out when loaded and has a foldable transport platform.

Overview of systems for vans

Note: No distinction is made between bicycles and e-bikes in this table, as the corresponding guide rails are suitable for both variants. However, it must be ensured that the specified payload of the carrier is not exceeded.

Model Typ                              Load capacity (ascending) Transport options
AGITO VAN Rear carrier 60 kg

2 bicycles or e-bikes

AGITO TOP Rear carrier 80 kg

2 e-bikes or 3 bicycles

TRIGO VAN Rear carrier 80 kg 3 bicycles or e-bikes
AGITO 120 Rear carrier 120 kg

1 scooter or max. 4 bicycles

AGITO 150 Rear carrier 150 kg 1 scooter or 1 scooter and 1 bicycle
KAWA II Rear carrier 150 kg

1 scooter or max. 3 bicycles



Carrier systems for motorhomes

With motorhomes, there are basically several ways to transport bicycles, scooters etc. SAWIKO offers both rear carrier and rear garage transport solutions. Frame-mounted rear carriers have a lower centre of gravity and therefore offer significant advantages in terms of stability, load capacity and safety compared to carriers mounted directly on the motorhome’s rear wall. All SAWIKO carrier systems can also be dismantled without tools. If your motorhome’s rear garage is large enough to transport bicycles and/or motorbikes in it, we offer carrier systems designed with a pull-in for comfortable loading. This also ensures your bikes are better protected from all weathers and potential theft.

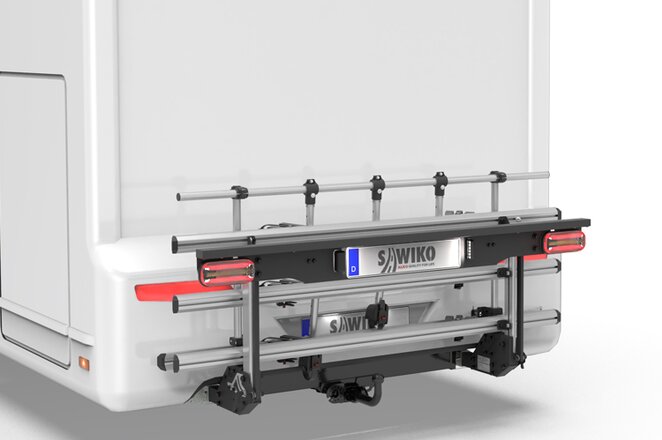

REAR CARRIER VELO III

This model is a real flyweight: This rear carrier weighs just 16 kilos yet can achieve huge things – because its load capacity of 80 kilograms makes it perfectly suited for e-bikes as well. As with the VARIO, the VELO III’s platform can be folded up to save space.

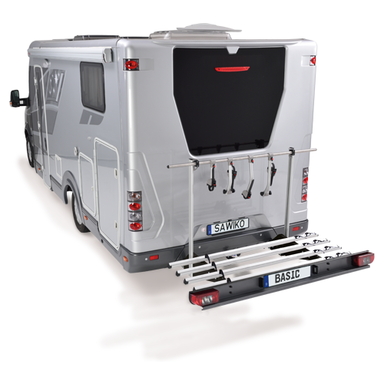

REAR CARRIER BASIC

This BASIC entry-level model from the SAWIKO rear carrier family lets you transport four bicycles or a light motorbike weighing up to 100 kilograms. Changeover to a cover box is also possible, whereby a weatherproof PVC tarpaulin is attached to the aluminium frame with a zip fastener and twist locks – creating a lightweight yet sturdy box for more storage space, privacy and weather protection.

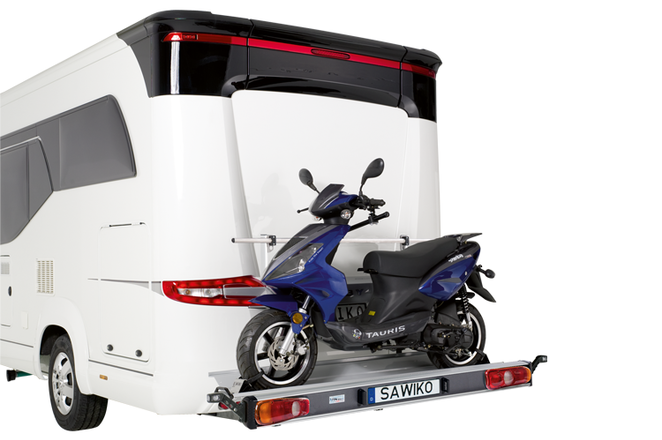

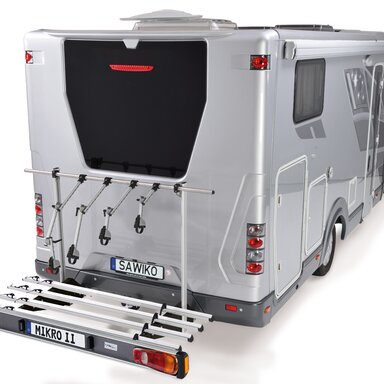

REAR CARRIER MIKRO II

With a load capacity of 120 kilograms, the MIKRO II is suitable for transporting up to four bicycles or one classic 125cc scooter.

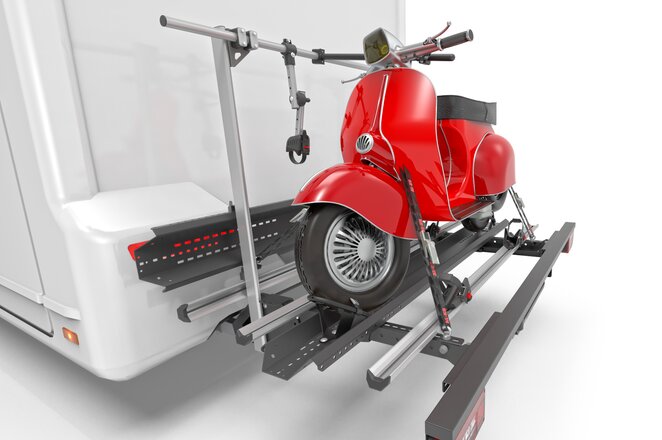

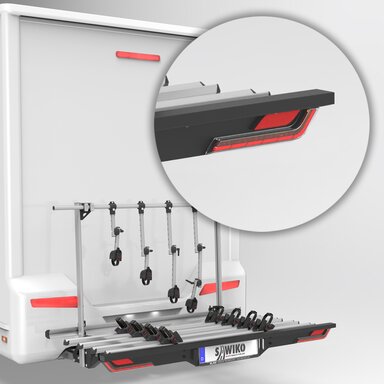

REAR CARRIER VARIO

With a weight of less than 30 kilograms, the VARIO offers a load capacity of 150 kilograms and can thus accommodate four bicycles or a combination of two wheels and one scooter. The carrier can be simply be folded up when not in use.

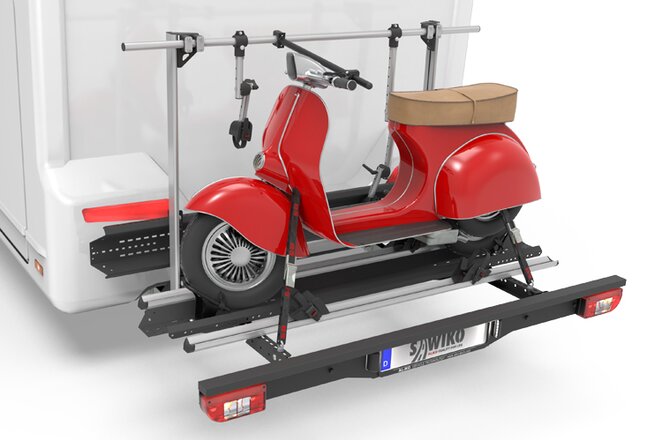

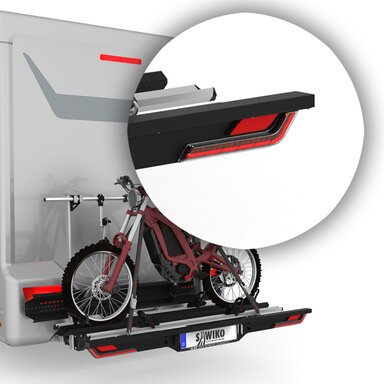

REAR CARRIER LIGERO III

This lightweight aluminium carrier with a load capacity of 150 kilograms can transport up to four bicycles or in the maximum version one scooter and two bicycles. The special thing about this model is that it comes equipped with a telescopic pull-out as standard. You can extend the carrier from the standard depth of approx. 500 millimetres to a maximum of 820 millimetres – so there is comfortable space for four bicycles or two bicycles with very wide handlebars. The rails for this can be bought separately.

Overview of systems for motorhomes

Note: No distinction is made between bicycles and e-bikes in this table, as the corresponding guide rails are suitable for both variants. However, it must be ensured that the specified payload of the carrier is not exceeded.

Model Typ                              Load capacity (ascending) Transport options
VELO III Rear carrier 80 kg

max. 2 e-bikes or max. 3 bicycles

BASIC Rear carrier 100 kg

max. 4 bicycles or 1 scooter and 1 bicycle

MIKRO II Rear carrier 120 kg

max. 4 bicycles or 1 scooter and 1 bicycle

VARIO Rear carrier 150 kg

1 scooter, 4 bicycles or 1 scooter and max. 2 bicycles

LIGERO III Rear carrier 150 kg

1 scooter or max. 4 bicycles or 1 scooter and 2 bicycles



Rear garage systems for motorhomes

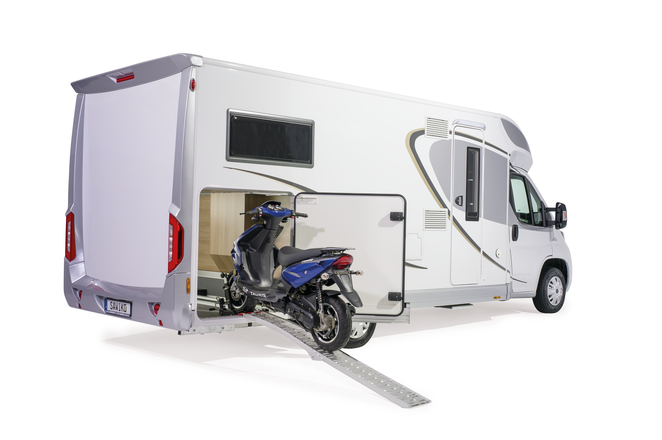

REAR GARAGE LOADER TRINEO

This lightweight and space-saving pull-in for the rear garage is designed for a load capacity of 160 kilograms. This makes it suitable for two bicycles as well as most scooter models. The system consists of a guide rail and a removable front wheel sled, and the motor is added in the electric version. A ramp, two lashing straps and two remote controls for the electric motor are also included.
Safety notice: The motorbikes must be additionally secured with lashing straps after loading!

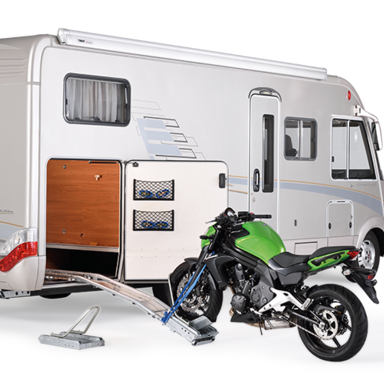

REAR GARAGE LOADER FOR MOTORBIKES

The SAWIKO garage loader with electric cable winch is specially designed for scooters and motorbikes. The vehicle is pulled onto the sled via a front wheel rocker and fastened there. The cable winch does the rest, so that even solo travellers can transport their vehicles without any problems. This system also comes complete with rails for the rear garage, drive-on rails, skids, wheel chocks and remote control. Safety notice: The motorbikes must be additionally secured with lashing straps after loading!

Overview rear garage systems

Note: No distinction is made between bicycles and e-bikes in this table, as the corresponding guide rails are suitable for both variants. However, it must be ensured that the specified payload of the carrier is not exceeded.

Model Typ                              Load capacity (ascending) Transport options
TRINEO Rear garage system 160 kg max. 1 scooter
REAR GARAGE PULL-IN FOR MOTORBIKES Rear garage system 370 kg

max. 1 scooter or 1 motorcycle



Trailers for all vehicles with a towbar

Besides carrier systems, SAWIKO also offers solutions for transporting heavier equipment or a variety of bicycles on trailers. Whether you have a car, camper van or motorhome, our transport solutions are suitable for any vehicle with a towbar.

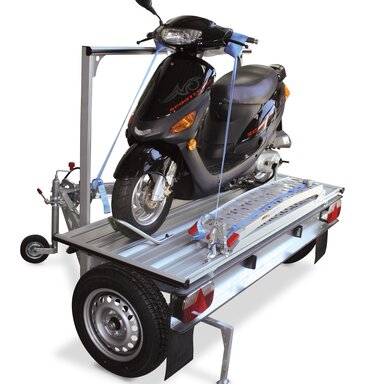

TRAIGO 500

If you want to take a little more with you, our range includes the light and compact TRAIGO 500. Thanks to its load capacity of 350 kilograms and variable conversion kits, you have the options of transporting up to four bicycles or e-bikes, or one scooter.

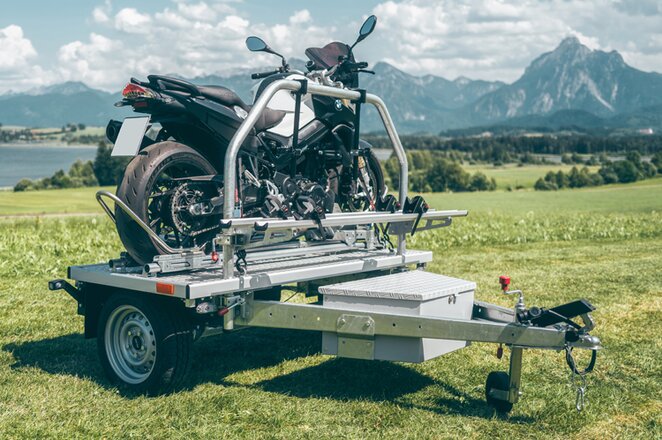

WHEELY / WHEELY DUO

The most universal solution for two-wheel transport: The DUO version of the WHEELY offers space for two motorbikes or quad bikes, several bicycles or even a small electric vehicle. It can also be extended with a comprehensive range of accessories, for example stable side walls, conversion kits for motorcycles (even three-wheel scooters) and a motorbike loading device. The small, manoeuvrable aluminium WHEELY trailer weighs 215 kilograms, the WHEELY DUO 280 kilograms. They are available with a load capacity of either 750 kilograms or 950 kilograms (only as a braked version). And if you want to go out without the carrier, its space-saving design can be easily tucked away in just two square metres.

Trailer overview

Note: No distinction is made between bicycles and e-bikes in this table, as the corresponding guide rails are suitable for both variants. However, it must be ensured that the specified payload of the carrier is not exceeded.

Model Typ                              Load capacity (ascending) Transport options
TRAIGO 500 Trailer 350 kg max. 4 bicycles or e-bikes or 1 scooter
WHEELY Trailer 535 kg oder 735 kg 1 scooter or 1 motorbike
WHEELY DUO Trailer 470 kg oder 670 kg 2 motorbikes or quad bikes or 1 small electric vehicle


Suitable accessories for carrier systems

Bicycle rail

Thanks to its design, the aluminium bicycle rail is optimally adapted to wide bicycle tyres, e.g. e-bikes. The supplied straps can be moved anywhere on the rail to set the right space for your bicycles

Bicycle rail with ratchet catch

Thanks to its design, the aluminium bicycle rail is optimally adapted to wide bicycle tyres, e.g. e-bikes. The supplied wheel chocks can be moved anywhere on the rail to set the right spacing for your bicycles.

Wheel chocks set with ratchet catch

The wheel chock set with quick-release ratchet is perfectly suited forwide e-bike tyres and optimally matched to our bike rail. The wheelchockscan be adjusted to exactly the right distance for you and fixedwith a wing nut. Thanks to the ratchet catch your bikes are perfectlysecured.

Lashing strap including ratchets and eyes

Spannfix, the quick-release system for scootersandmotorcycles, is very easy to use. The lashing hooks are alreadysecurelymounted on the ratchets. These only need to be hooked into thelashingrings,then the upper end of the Spannfix is placed around thehandlebarswith the practical loops and lashed down. The protection onthe beltprevents scratches on the bodywork parts.
